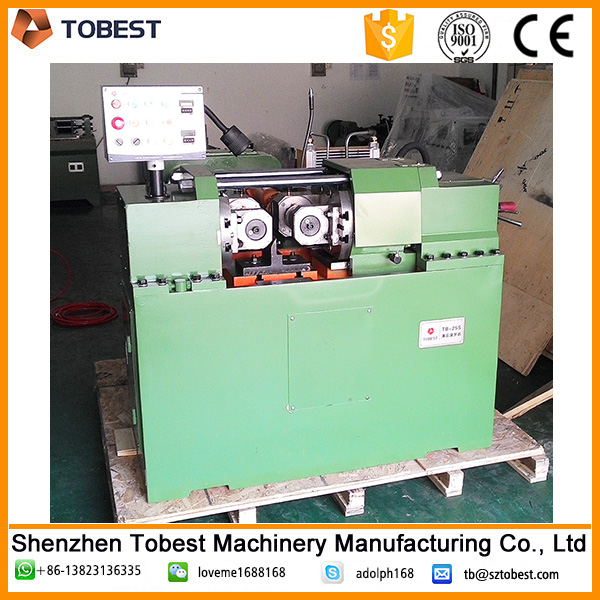

Tobest thread rolling machine bolts threading machine

Product Categories

Shenzhen Tobest Machinery Manufacturing Co., Ltd

Contact Now

Name: Tobest thread rolling machine bolts threading machine
Brand: TOBEST
Price: 1 USD

Place of Origin : China

Brand Name : TOBEST

Model Number : TB-25S

Certification : CE

Packaging Details : Wooden case

Delivery Time : 25-30 working days

Payment Terms : T/T

Supply Ability : 30 sets/month

MOQ : 1

Contact Now

Work piece diameter				φ4-42/mm
Range of pitch rolled				0.7-3.0P
Length of thread rolled				Fixed and rolling-through for option
Spindle speed				36/47/60/78rpm
Outside diameter of rolling die				φ135mm-φ170mm
Inside diameter of rolling die				φ54mm
Thickness of rolling die				110mm
Min.Distance between die spindles				120mm
Max.Distance between die spindles				240mm
Output(pcs/min)				4-20 pcs/min
Machine motor				5.5HP(4042W)
Hydraulic motor				3HP
Max. feed pressure				15T
